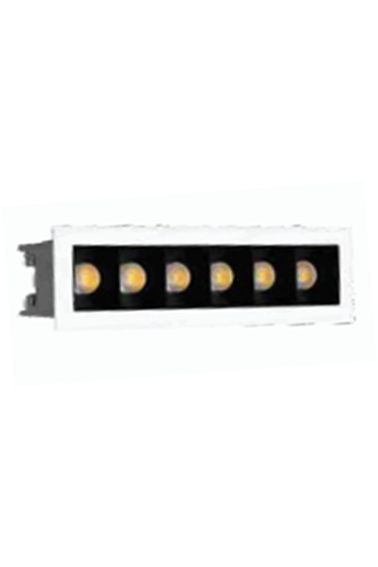

Profile Lighting - Linear & Square Series 3
The Profile Lighting – Linear & Square Series 3 is a powerful modular lighting system designed for precise, glare-controlled illumination in modern architectural spaces. Featuring multi-lens optical control and compact recessed profiles, this series delivers focused, high-output lighting with exceptional visual comfort. Its versatile linear and square formats make it ideal for premium commercial, retail, and hospitality applications.
Construction Details:
- Housing: Extruded aluminum with powder-coated finish (White / Black)
- Reflector: High-purity aluminum with glare-control baffle
- Lens: Clear tempered glass or anti-glare diffuser
- LED Module: Integrated COB LED with optimized optics
- Driver: External constant-current driver with surge protection
- Mounting: Recessed or surface-mount frame with modular connection system
Benefits:
- Sleek, modular design ideal for linear or grid-based architectural layouts.
- High-quality COB LEDs ensure uniform brightness and superior visual comfort.
- Low-glare optics and deep reflector design minimize direct glare.
- Available in multiple lengths, beam angles, and finishes for design flexibility.
- Excellent heat management ensures long operational life and stable performance.
- Supports dimming compatibility for precise brightness control.
- Suitable for continuous run installations with seamless alignment.
| Parameter | Specification |
|---|---|
| Model | Profile Lighting – Linear & Square Series 3 |
| Wattage Options | 12W / 18W / 25W / 35W / 45W |
| Input Voltage | 220–240 V AC, 50/60 Hz |
| Light Source | High-efficiency COB LED Modules |
| Luminous Efficacy | Up to 110 lm/W |
| Color Temperature (CCT) | 3000 K / 4000 K / 6000 K |
| CRI (Color Rendering Index) | >90 |
| Beam Angle | 24° / 36° / 60° |
| Power Factor | >0.95 |
| Dimming | Optional (Triac / DALI / 0–10 V) |
| Ingress Protection | IP20 (Indoor use) |
| Operating Temperature | –10 °C to +45 °C |
| Housing Color Options | White / Black / Dual Tone |
| Mounting Type | Recessed Linear or Square Profile |
Applications:
- Corporate Offices and Boardrooms
- Retail Stores and Showrooms
- Art Galleries and Display Areas
- Hotels, Lobbies, and Hospitality Corridors
- Restaurants, Cafés, and Lounges
- Modern Residential Spaces
- Exhibition and Architectural Lighting
